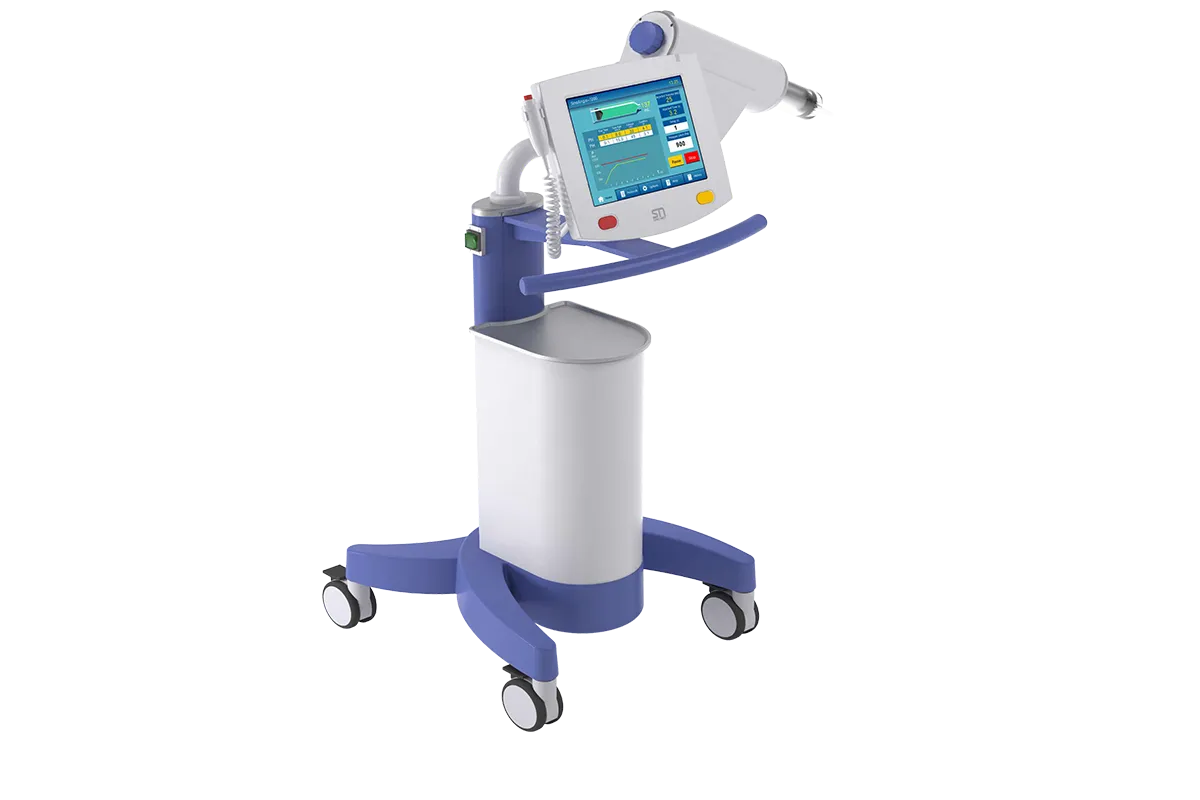

SinoAngio Series DSA Injectors
Unique design of "Direct Pressure Sensor" Technology
Unique design of "Direct Pressure Sensor" Technology

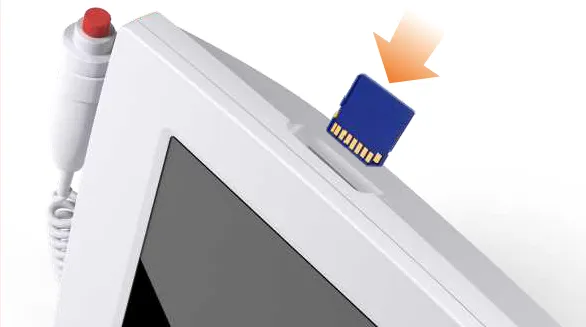

External SD card memory
Heat the contrast media and saline, making the injection process more comfortable

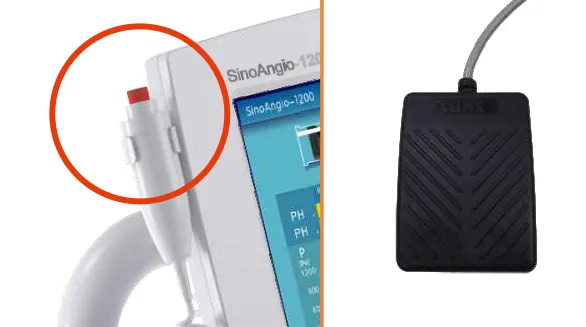

Hand switch / Foot switch
• Hand switch and foot switch can directly control the start/stop injection, convenient and quick

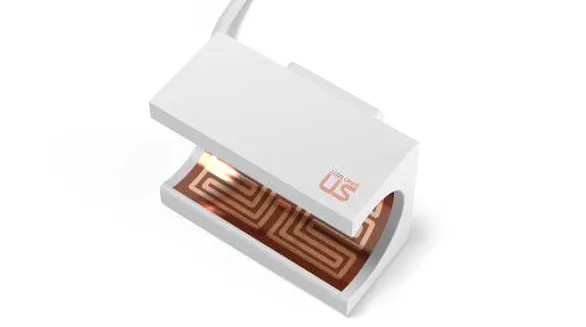

Syringe heater (Optional)
Heat the contrast media and saline, making the injection process more comfortable

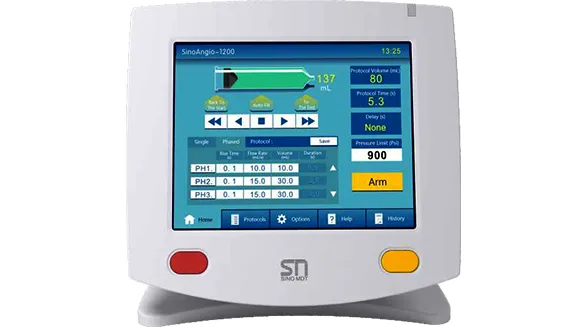

Perfect Display Quality
12.1 inch color LCD control display, large visual angle, graphic interface
| Model | High-Pressure Injector | |
|---|---|---|
| Syringe | Single Syring | |
| Size of Syringe | 150mL sterile syringe | |
| Injection volume | 0.1mL ~ Volume of syringe | |
| Injection delay | 0~600 S | |
| Injection phases | 1~8 phases | |
| Injection protocol | Up to 120 protocols | |
| Syringe heater | 35℃±5℃ (≥40min) | |
| Tilt lockout | Rotate head to arm-down, minimize risk of air embolish | |
| Control console | 12.1-inch real color touch LCD for both local and remote (Remote is optional) | |
| ISI | Synchronization of injection delay and scanning delay | |
| Pressure limit | 100 ~1200 Psi | |
| Flow rate | 0.1mL/s~50.0mL/s Step: 0.1mL/s for 0.1mL/s≤X≤10.0mL/s 1mL/s for 10mL/s X≤50.0mL/s |
|
